Vacuum Custom Systems

Our repertoire includes complex experimental systems and combinations of standard axes used as multi-axis manipulators. The systems shown here are examples of some possible ways of combining our vacuum-compatible stages.

MP105-3

MP105-3 - Vacuum Custom Systems
Compact manipulator for X, Y and Z. The internal Piezomotor allow movement with nanometer resolution with an...

MP53-3-PM

MP53-3-PM - Vacuum Custom Systems
Very compact three axes manipulator for x, y and z. The internal piezo motor allow movement with nanometer...

2PLT240-HT160

2PLT240-HT160 - Vacuum Custom Systems

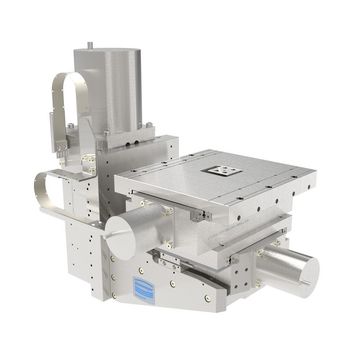

XYZ-System für das Hochvakuum Vakuum-Positioniersystem für Lasten bis 15 kg. Kugelgewindetriebe in den...

KLT300

KLT300 - Vacuum Custom Systems
XY stage with stability in the nanometer range Very stable xy-stage with aperture and 10 mm stroke. Made for...

2LA95

2LA95 - Vacuum Custom Systems
XZ system with piezo brake (UHV) UHV-system with 7 x 7 mm stroke. Dry running, piezo brake, lead screw,...

3LA170

3LA170 - Vacuum Custom Systems
Heavy duty XYZ system (UHV) Heavy duty three axes manipulator for loads up to 20 kg in vacuum. Dry running,...

3 Axis Beam Aligner

3 Axis Beam Aligner - Vacuum Custom Systems

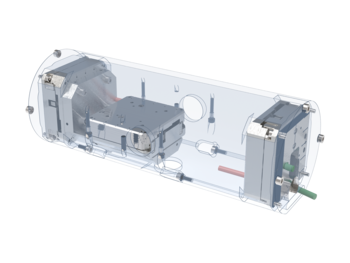

This positioning system is based on MT53 stages with piezo-drives. Two of those stages are used for...

LA80-2LA95

LA80-2LA95 - Vacuum Custom Systems
Transfer system for (considering it is in vacuum) quit high speed and life time in the range of km. The...

3LA95

3LA95 - Vacuum Custom Systems
XYZ-System mit Piezobremse (UHV) Three coordinate manipulator with stroke of 5 x 20 x 10 mm and loads up to...

sample manipulator

sample manipulator - Vacuum Custom Systems

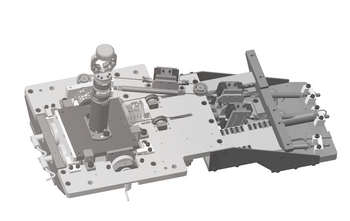

In this system 12 piezo motors are working in pairs forming a six degree of freedom probe manipulator....

LA97-MT85

LA97-MT85 - Vacuum Custom Systems
A three axes magnet free stage system. Strokes are at 200 mm for x and each 10 mm for y and z (vertical)....

sample fixation (non

sample fixation (non magnetic, UHV) - Vacuum Custom Systems

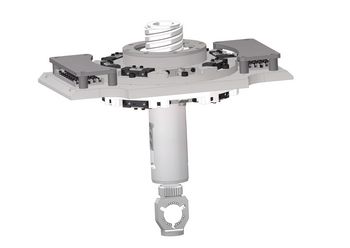

In order to protect the delicate probe in its equally delicate probe holder this probe holder was designed....

linear stage with two

linear stage with two lifting stages - Vacuum Custom Systems
A robust PLT240 in vacuum preparation is carrying two lifting stages. All stages are driven by vacuum...

3LT300

3LT300 - Vacuum Custom Systems

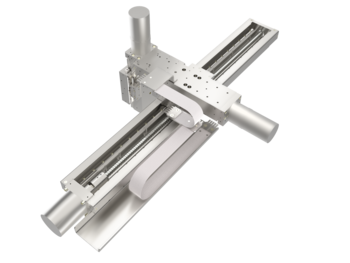

XYZ manipulator Three axes manipulator for ultra high vacuum with travel of 100 x 10 x 10 mm. Dry running...

KT120

KT120 - Vacuum Custom Systems
non magnetic XY stage This is a standard xy-stage with 10 mm stroke. Resolution is 5 nm. The stage features...

Coaxial rotary table

Coaxial rotary table with two rotation and longitudinal movement (UHV) - Vacuum Custom Systems
This rather exotic UHV-assembly combines two coaxial rotational axes which can be moved axially during...

camera manipulator

camera manipulator - Vacuum Custom Systems
Quite a complex mechanism designed for an experiment at Bessy. The manipulator is panning an ex-ray detector...

2PLT240-HT160

2PLT240-HT160 - Vacuum Custom Systems
XYZ-System für Hochvakuum Vacuum system for up to 15 kg. Ball screw drives are used in XY and in the...

Polarization Transform

Polarization Transform - Vacuum Custom Systems

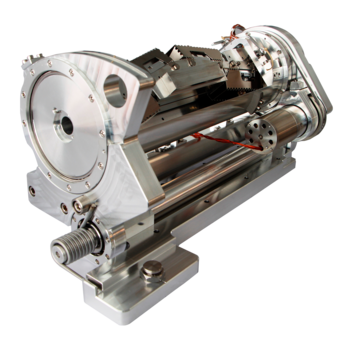

UHV mirror adjuster for Beamline This UHV positioning unit tilts into the beam by rope pulley driven from...
