Standard and custom high-end positioning systems
High-performance linear axes, Travel up to 2000 mm, Rep up to 0.3 µm, Load up to 310 kg, Speed up to 4120 mm/s
Modular linear stages, Travel up to 1500 mm, Rep up to 0.3 µm, Load up to 310 kg, Speed up to 3260 mm/s
Miniature Linear Stages, Travel 10 - 80 mm, Rep up to 0.2 µm, Load up to 9 kg, Speed up to 100 mm/s
Precision XY Stages, Travel up to 450 x 450 mm, Rep up to 0.2 µm, Load up to 30 kg, Speed up to 1400 mm/s

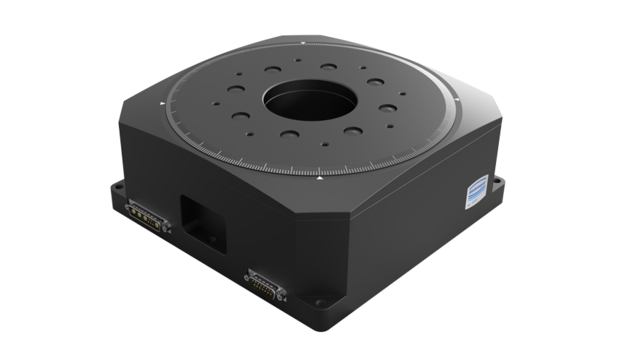

Rotary positioner, travel up to n x 360° (unlimited), rep up to 0.0001°, load up to 15 kg, speed up to 1500°/s
Z vertical stages, Travel up to 25 mm, Rep up to 0.7 µm, Load up to 45 kg, Speed up to 10 mm/s
XYZ-Rx-Ry-Rz motions, Travel 5 - 2400 mm, Rep up to 0.3 µm, Speed up to 1500 mm/s
Very small strokes, smallest increments in X and Y and further rotary movements around Z.
Custom series components and series assemblies
Custom positioning systems for cleanrooms, laboratory and production
Clean room / vacuum X, XY, Z stages for HV, UHV and UV, DUV, EUV radiation
Clean room / vacuum XYZ-R multi-axis systems for HV, UHV and UV, DUV, EUV radiation
Customized and highly demanding positioning systems
