Portals

Portals are used when both, sensor and object to be measured can be moved. This split motion leads to a simpler system at the same footprint compared to a gantry.

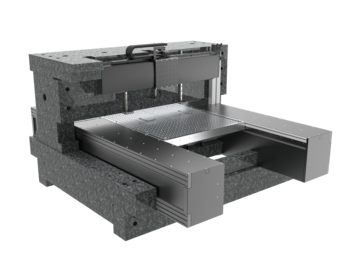

XY laser panel stage with travels up to 2500 x 1500 mm | Positioning system X linear motor, air bearing | Y ball screw, AC servo
XY laser panel stage with travels up to 2500 x 1500 mm | Positioning system X linear motor, air bearing | Y ball screw, AC servo

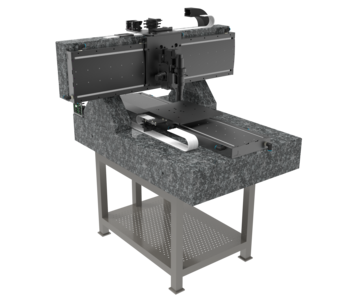

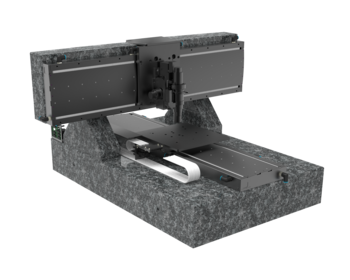

XYZ inspection portal | XY linear motor, profile rail | Z ball screw, DC motor | Pitch 720 x 720 x 100 mm
XYZ inspection portal | XY linear motor, profile rail | Z ball screw, DC motor | Pitch 720 x 720 x 100 mm

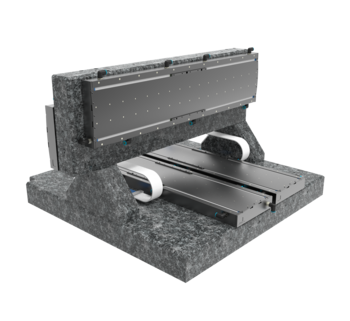

XYZ Double inspection portal with travels up to 720 mm | XY Linear motor, profile rail | Z Ball screw, AC Servo
XYZ Double inspection portal with travels up to 720 mm | XY Linear motor, profile rail | Z Ball screw, AC Servo

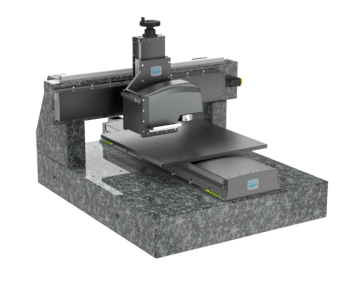

XYZ positioning system for automated inline wafer inspection e.g. layer thickness measurement | travels in XY up to 650 mm, Z 100 mm
XYZ positioning system for automated inline wafer inspection e.g. layer thickness measurement | travels in XY up to 650 mm, Z 100 mm

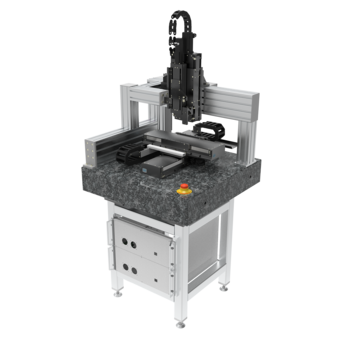

XYZ Positioning System with XY Stage (cleanroom ISO 6) | XY cross roller, ball screw, stepper motor | Z lead screw | travel 305 x 305 x 200 mm
XYZ Positioning System with XY Stage (cleanroom ISO 6) | XY cross roller, ball screw, stepper motor | Z lead screw | travel 305 x 305 x 200 mm

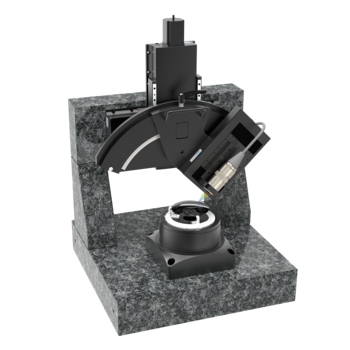

Rz-X-Y-Ry-Rx | Z-R-F 8-axis positioner for inspection of optics | aperture rotary stage and aligner 45 mm | stroke 360°, 2 x 2 x 25 mm, 90°, 50 mm
Rz-X-Y-Ry-Rx | Z-R-F 8-axis positioner for inspection of optics | aperture rotary stage and aligner 45 mm | stroke 360°, 2 x 2 x 25 mm, 90°, 50 mm

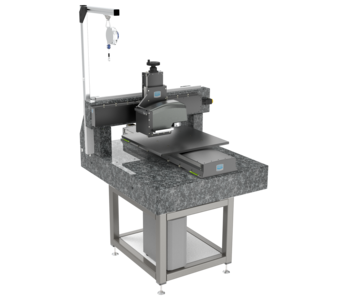

XXL XYZ Portal with Vacuum Chuck | XY Stepper Motor, Ball Screw, Profile Rail, Linear Scale | Z Cross Roller | Travel 1000 x 1000 x 100 mm
XXL XYZ Portal with Vacuum Chuck | XY Stepper Motor, Ball Screw, Profile Rail, Linear Scale | Z Cross Roller | Travel 1000 x 1000 x 100 mm
XY-2Z 3D printing gantry (clean room) | XY linear motor, linear measuring system | Z AC servo, ball screw, linear measuring system | 300 x 200 x 100 mm
XY-2Z 3D printing gantry (clean room) | XY linear motor, linear measuring system | Z AC servo, ball screw, linear measuring system | 300 x 200 x 100 mm
XYZ industrial portal (positioning in case of dust, radiation, temperature) | profile rail, ball screw drive, AC servo | Travel 1000 x 600 x 100 mm
XYZ industrial portal (positioning in case of dust, radiation, temperature) | profile rail, ball screw drive, AC servo | Travel 1000 x 600 x 100 mm
9-axis positioning system with travels up to 100 mm | XYZ DC motor, ball screw, motor encoder | Phi Theta Omega DC motor, AC servo, harmonic drive
9-axis positioning system with travels up to 100 mm | XYZ DC motor, ball screw, motor encoder | Phi Theta Omega DC motor, AC servo, harmonic drive
