DT65-NM
Rotary Stages
Highly dynamic rotary stage (Piezo Motor), travel n x 360 °, aperture ⌀ 8 mm, rep ± 0.003 °, load 1 kg, speed 440 °/s

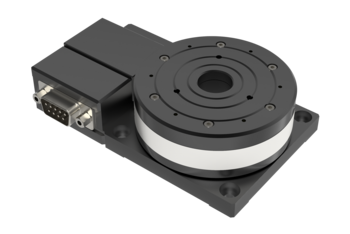

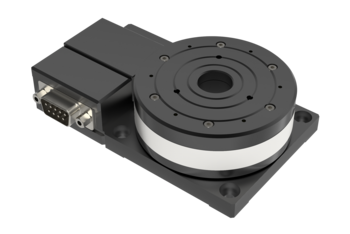

Highly dynamic rotary stage
The smallest stage in the Steinmeyer Mechatronik product range provides high dynamics and speed. The DT65 is equipped with a piezo drive which enables very small step sizes.
Motion controller FMC 400
For the DT65 our motion controller of the FMC 400 series is used. As an option the rotary stage is available with acentral aperture.
Ideal for demanding environments
In the vacuum and non-magnetic version, the DT65 is perfect for applications in challenging environments. It is, therefore, particularly suitable for research and development and experimental physics.
DT105 | -1NM-W | -2NM-W | -3NM-W | -4NM-W | ||
Number of Motors | One Motor | Two Motors | Three Motors | Four Motors | ||
Travel | [deg] | n x 360 | n x 360 | n x 360 | n x 360 | |
Repeatability unidirectional | [deg] | ± 0.003 | ± 0.003 | ± 0.003 | ± 0.003 | |
Repeatability bidirectional | [deg] | ± 0.006 | ± 0.006 | ± 0.006 | ± 0.006 | |
Accuracy | [deg] | ± 0.009 | ± 0.009 | ± 0.009 | ± 0.009 | |
Excentric runout | [µm] | ± 6 | ± 6 | ± 6 | ± 6 | |
Wobble | [µrad] | ± 140 | ± 140 | ± 140 | ± 140 | |
Positioning speed | [deg/s] | 294 | 294 | 294 | 294 | |
Max. speed | [deg/s] | 441 | 441 | 441 | 441 | |
Max. acceleration | [deg/s2] | 4983 | 4983 | 4983 | 4983 | |
Max. load Fz | [N] | 10 | 10 | 10 | 10 | |
Max. torque Mx, My | [N] | 0.2 | 0.2 | 0.2 | 0.2 | |
Max. torque Mz | [N] | 0.3 | 0.6 | 0.9 | 1.2 | |
Length | [mm] | 106 | 106 | 106 | 106 | |
Width | [mm] | 65 | 65 | 65 | 65 | |
Height | [mm] | 26 | 26 | 26 | 26 | |
Turntable Ø | [mm] | 65 | 65 | 65 | 65 | |
Aperture Ø | [mm] | 8 | 8 | 8 | 8 | |
Weight | [kg] | 0.4 | 0.4 | 0.4 | 0.4 | |
Bearing | Thin-section Bearing | |||||
Motor | Nanomotion (Piezo) | |||||
Transmission | Friction, Ultrasonic | |||||
Feedback | Angular Scale | |||||
Surface Coating | Anodized Aluminum, Cleaned Aluminum | |||||
Optional Features | Customer-specific adapters or bore grids, | |||||
Versions for Cleanroom | Clean Room Class ISO 4 ((higher in request) | |||||
Versions for Radiation | EUV, DEV, UV (X-ray and gamma on request) | |||||
Versions with Lower Magnetism | low-magnetic (magnet-free on request) | |||||
Versions for Vacuum | 10-8 mbar (higher in request) |
