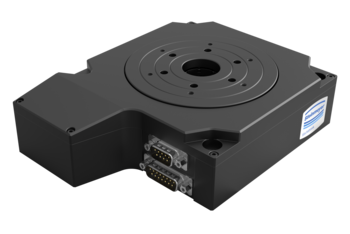

DT130-SM
Rotary Stages

Selfretaining rotary stage (stepper motor), travel n x 360 °, aperture ⌀ 25 mm, rep ± 0.003 °, load 4 kg, speed 40 °/s
DT130-SM



Rotary stage with high resolution

The DT130 rotary stage has been designed to precisely position small loads. The worm gear drive guarantees very high selfretaining forces in the desired position and - due to the high resolution - simultaneous high repeatability.

Easy to control and combine

The DT130 is available with stepper motor oder DC motor and is easy to control with our innovative FMC series motion controllers. In addition, the rotary stage can be combined with the matching MT130 micro stage to form complex multi-axis systems.

Optimum for measurement engineering

The operating parameters of the DT130 rotary stage correspond with the special requirements in applications such as measurement engineering. It is also ideal for use in applications in laser machining, photonics or in research and development.



DT130   -SM
Travel [deg] n x 360
Repeatability unidirectional [deg] ± 0.003
Repeatability bidirectional [deg] ± 0.007
Accuracy [deg] ± 0.007
Excentric runout  [µm] ± 5
Wobble [µrad] ± 50
Positioning speed [deg/s] 27
Max. Speed [deg/s] 40
Max. acceleration [deg/s2] 454
Max. load Fz [N] 47
Max. torque Mx, My [N] 1.9
Max. torque Mz [N] 0.9
Length [mm] 170
Width [mm] 130
Height [mm] 45
Turntable Ø [mm] 100
Aperture Ø [mm] 25
Weight [kg] 2.0
Bearing   Precision Ball Bearing
Motor   Stepper Motor
Transmission   Worm Gear Drive
Feedback   Motor Encoder
Surface Coating   Anodized Aluminum, Nickel, Cleaned
Optional Features   Electrical and pneumatic rotary feed-through
Versions for Cleanroom    Clean Room Class ISO 4 (higher on request)
Versions for Radiation

EUV, DEV, UV (X-ray and gamma on request)

Versions with Lower Magnetism   -
Versions for Vacuum    10-6 mbar
