DT240
Rotary Stages

36 mm ultra-flat rotary stage (PCB motor), travel n × 360°, 100 mm aperture, rep ±0.001°, load 3 kg, speed 36,000°/s

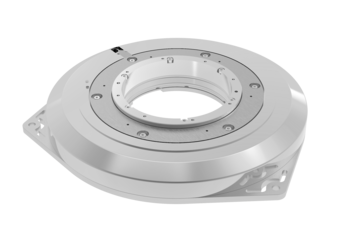

Ultra-flat Rotary Stage with large aperture

The ultra-flat 36 mm flat-design stage combines a compact build height with an exceptionally large 100 mm aperture. The minimal installation height allows the light source, optics, and detector to be positioned extremely close to the sample. This reduces optical divergence, increases intensity, and minimizes noise — ideal for precise imaging and analytical workflows.

Ideal for highly stable imaging, analysis, and inspection tasks

Unlimited rotation range for flexible scanning and measurement routines

Compact design with only 36 mm height and a 100 mm aperture

Absolutely continuous rotation with resolutions up to 0.001°

Consistent performance even at high rotational speeds of up to 36,000°/s

Options:

Thin-section bearings or crossed-roller bearings for smooth and flat bearing configurations
Air-bearing version for speeds up to 600 rpm and maximum lifetime
Brake, rotation limiter, or mechanical hard stop
Purge air, extraction ports, integrated cable management

Application Fields

High-resolution optical and sensor setups, laboratory analytics, 3D analysis of live biological samples, wafer inspection, 3D topography and thickness measurement, lithography and mask handling, radar and RF technology, rotary platforms for compass systems, scanning applications, MEMS wafer mapping

Specifications

DT240-PCB-W		Rz
Travel	[deg]	n × 360
Repeatability unidirectional	[deg]	± 0.1 – 0.001
Repeatability bidirectional	[deg]	± 0.2 – 0.002
Positioning speed	[deg/s]	360 – 36000
Max. load Fz	[N]	30
Length	[mm]	258
Width	[mm]	258
Height	[mm]	36
Rotary plate Ø	[mm]	238
Aperture Ø	[mm]	100
Weight	[kg]	4
Bearing		Wire race bearing
Motor		PCB motor
Feedback		Angular scale
Surface		Anodized aluminum
Optional features		Thin-section ring bearing or wire race bearing for smooth-running, low-profile rotary bearing arrangement, design with air bearing for speeds up to 600 rpm and maximum lifetime, electrical and pneumatic rotary feed-through, superfinished turntable for optimum axial run-out, brake, rotation limiter, cable routing, reversing hard stop, sealing air extraction system
Cleanroom versions		up to cleanroom ISO 6 (higher on request)
Beam variants		on request
Magnetism variants		magnetic
Vacuum variants		on request
