MT105-NM
Miniature Linear stages

Micro stage for demanding environments. Equipped with precision cross roller bearings and piezo motor.
MT105-NM - Miniature Linear stages

Micro stage with high dynamics and speed

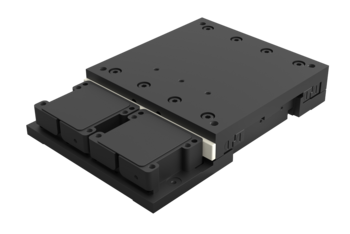

The MT105 is a micro stage for universal use characterized by its high dynamics and speed. Compared to its size, it has a large travel and very small step sizes thanks to the piezo motor.

Flexible and universal

The MT105 is equipped with precision cross roller bearings. It is possible to equip this micro stage with two motors for positioning higher loads, as an option. And the stage can be effortlessly com­ bined into an XYZ system.

Optimum for demanding environments

Challenging environments in research and development often re­ quire optional special solutions. The MT105 micro stage is designed to achieve outstanding processing and positioning accuracy under extreme conditions such as in high vacuum, ultra-­high vacuum and even for non­-magnetic applications.

References

Bioprinting-Based High-Throughput Fabrication of Three-Dimensional MCF-7 Human Breast Cancer Cellular Spheroids | Engineering (2015) Vol.1 Issue (2): 269-274 | https://www.engineering.org.cn/EN/10.15302/J-ENG-2015062





Modell MT105-30-2NM-L-50-NM-L-100-NM-L
Travel [mm] 3050100
Repeatability unidirectional [μm]± 0.4± 0.4± 0.4
Repeatability bidirectional [μm]± 0.5± 0.5± 0.5
Accuracy [μm]± 1.4± 1.6± 2.1
Flatness [μm]± 1.5± 2.5± 5
Straightness [μm]± 1.1± 1.8± 3.5
Positioning speed [mm/s]505050
Max. acceleration [m/s2]111
Max. load Fx [N]444
Max. load Fy [N]555555
Max. load Fz [N]555555
Max. torque Mx [Nm]222
Max. torque My [Nm]0.90.90.9
Max. torque Mz [Nm]0.70.70.7
Pitch [µrad]± 55± 70± 100
Yaw [µrad]± 35± 40± 60
Resolution [µm]0.10.10.1
Weight [kg]1.01.1
Specifications are subject to change. Values are for the single axis with our controller. Parameters shown here are typical values for a standard configuration. By customization and given in depth knowledge of your application significantly improved values can be achieved. Please contact us.
