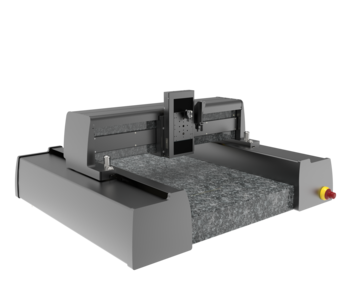

Universal XYZ positioning system for precise overhead positioning tasks

The customized processing head or sensor on Z-axis moves extremely fast over the specimen carriers. Due to the large travel distances of up to 600 mm, high quantities can be processed or inspected. Due to the gantry design, integration into cycle lines and the lining up of several such gantries can be easily realized.

Flexible adaptation to production requirements

Robust, compact and highly dynamic

This axis system is both fast and accurate. You benefit from higher productivity, lower maintenance costs and can approach smaller and thus more positions per part or sample carrier. It thus meets a wide range of production requirements for the high throughput of most formats such as slides, microtiters, wafers and a variety of carriers. With special lubrication and adapted particle traps, this universal gantry can be adapted for use in the pharmaceutical industry, medical technology or for clean rooms.

Individual extensions and customizations

Engineering services include the fitting of the systems to your structure and the desired controlls. Furthermore, we develop prototypes and like to adapt the systems to the environmental requirements of your application particle emission, radiation, temperature, precision special parts manufacturing, working height, collision protection, safety concept, compensation factor and filter, sensor mounting, brake, decoupling, special lubrication, special colors, holders, adapters, special motors with pharmaceutical approval, comprehensive documentation, test protocoll, llife cycle tests

Fields of application

Metrology, inspection, assembly, 3D printing, additive manufacturing, automation, scanning, chip systems
