XYZ gantry for highly dynamic laser applications | XY linear motor, profile rail | Z ball screw, AC servo | travels up to 1300 x 800 mm
Gantries

782300:150.26

Highly dynamic XYZ positioning system for laser applications

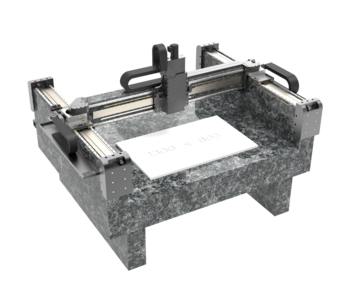

This gantry allows highly dynamic motions over an area of 1300 x 800 mm. The custom processing head or sensor on Z-axis moves quickly, continuously over the carriers on the granite. The profiled rail guides are mounted directly on the granite to provide optimum running characteristics for enormously repeatable sub-micron results. The gantry design makes integration into cycle lines and lining up multiple such portals easily possible.

High throughput with consistent quality

  • Ideal for high-precision and dynamic applications e.g. laser joining, laser micro applications in medical technology
  • Very large travel ranges of 1300 x 800 mm
  • Reliable and consistent quality due to high-precision positioning with a repeatability of up to 0.8 µm
  • Integrated linear motors guarantee high accelerations and speeds with simultaneous high precision
Optionally expandable:
  • Stackable system design
  • Adaptation of travels, length combination, cabling and motion control
  • Base plate made of granite or aluminum
  • Special configuration for biotechnology, medical technology, pharmaceuticals, semiconductors
  • Versions for clean room ISO 14644-1 (up to class 1 on request)
  • Immediate use with pre-configured motion controller incl. exemplary software



Individual extensions and customizations

Engineering services include the fitting of the systems to your structure and the desired controlls. Furthermore, we develop prototypes and like to adapt the systems to the environmental requirements of your application particle emission, radiation, temperature, precision special parts manufacturing, working height, collision protection, safety concept, compensation factor and filter, sensor mounting, brake, decoupling, special lubrication, special colors, holders, adapters, special motors with pharmaceutical approval, comprehensive documentation, test protocoll, llife cycle tests



Fields of application

Highly dynamic laser applications, microlaser joining, microlaser welding, laser micromachining, microlaser cutting, biomedical laser, laser microcutting in medical technology

782300:150.26

X

Y

Z

Standard SystemLA250LA250PLT165

Travel

[mm; deg]

800 1300

200

Repeatability unidirectional

[µm; deg]

± 0.8

± 0.8

± 0.7

Repeatability bidirectional

[µm; deg]

± 1

± 1

± 1

Positioning speed

[mm/s; deg/s]

500

500

50

Max. load

[N]





150

Motor



Iron Core Dynamic Linear Motor



Iron Core Dynamic Linear Motor



AC-Servo

Drive









Ball Screw

Guide

Profile Rail

Profile Rail

Profile Rail

Feedback

Linear Scale

Linear Scale

Linear Scale



Specifications are subject to change. Values are for the single axis with our controller. Parameters shown here are typical values for a standard configuration. By customization and given in depth knowledge of your application significantly improved values can be achieved.
