2PLT240-HT160
Vacuum / Cleanroom Multi Axes Systems

782471:001.26

XYZ-System für Hochvakuum

Vacuum system for up to 15 kg. Ball screw drives are used in XY and in the lifting stage. Drives are vacuum stepper motors. The system is based upon PLT240 and HT160.

Controllers

FMC250/280

Multi-axis controller with increased current and voltage for point-to-point positioning.

FMC400/450

Multi-axis controller fully ready for tracking, simple creation of own programs.

PLC

We support integration of our systems into PLC architectures, e.g. Beckhoff

Used Standard Components

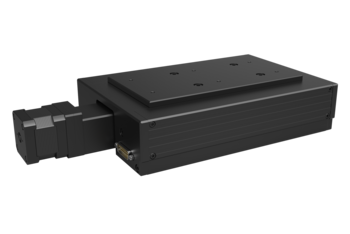

HT160-SM

Precision vertical lift stage (ball screw), travel 16 mm, rep ± 1.7 µm, load 5 kg, speed 2,2 mm/s

PLT240-DLM

High performance stage (linear motor), travel 200 - 1000 mm, rep 0.4 µm, load 15 kg, speed 1815 mm/s

PLT240-AC

High performance stage (ball screw), travel 200 - 850 mm, rep ± 0.4 µm, load 64 kg, speed 260 mm/s

PLT240-SM

High load linear stage (ball screw), travel 200 - 850 mm, rep ± 3.9 µm, load 42 kg, speed 260 mm/s

HT160-DC

Precision vertical lift stage (ball screw), travel 16 mm, rep ± 0.7 µm, load 5 kg, speed 16.6 mm/s

Customize system

Your customized system

Name *

Company *

Email *

Phone *

System

Environment

Load

Travel

smallest setting step

Quelle *

Message *

201/5000 Even more axes for your vacuum applications

Almost all atmospheric standard axes are anodized with UHV lubrication for residual pressures up to 10-6 mbar - or even better - available. Click here for the overview of our standard axes!

Overwiew standard stages Contact technical consultants
