HT240-SM
Lifting Stages
Industrial suited lifting stage designed for high loads. Equipped with a stepper motor.
Ideal for high loads

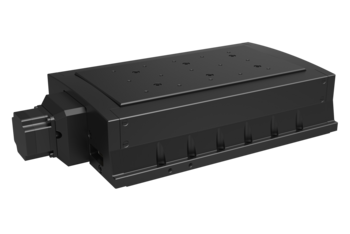

For movements in the vertical direction, the Steinmeyer Mechatronik HT240 is a product specially designed for high loads which has outstanding resolution. Thanks to its robust, production proven design, it is protected against particles and dust and can be used in the industrial environment especially for heavy load applications.
Easy to combine
The HT240 is equipped with either a stepper motor or AC motor and provides a lift of up to 25 mm.
Thanks to our modular axis systems, it can be effortlessly combined with matching DT series rotary stages or PLT series linear stages to create complex multi-axis systems.
Suitable for industrial applications
The HT240 is principally used wherever high loads need to be precisely positioned – in special and precision machine construction, in laser technology, the automation industry and measurement engineering.
| Modell HT240 | -25-SM | |
| Travel | [mm] | 25 |
| Repeatability unidirectional | [μm] | ± 1.7 |
| Repeatability bidirectional | [μm] | ± 2.7 |
| Accuracy | [μm] | ± 9.6 |
| Flatness | [μm] | ± 1.3 |
| Straightness | [μm] | ± 1.3 |
| Positioning speed | [mm/s] | 1.7 |
| Max. acceleration | [m/s2] | 0.03 |
| Max. load Fx | [N] | 440 |
| Max. load Fy | [N] | 440 |
| Max. load Fz | [N] | 410 |
| Max. Torque Mx | [Nm] | 35 |
| Max. Torque My | [Nm] | 45 |
| Max. Torque My | [Nm] | 55 |
| Pitch | [µrad] | ± 50 |
| Yaw | [µrad] | ± 30 |
| Weight | [kg] | 18 |
Stages for cleanroom and vacuum applications
Even more stage for your clean room and vacuum applications?
Almost all atmospheric standard axes are anodized with UHV lubrication for residual pressures up to 10-6 mbar and clean room class ISO 6 - or even better - available. Click here for the overview of our vacuum and clean room stages!
