Inspection System for Solar Wafers
Inspection and Mikroscopy

782460:001.26

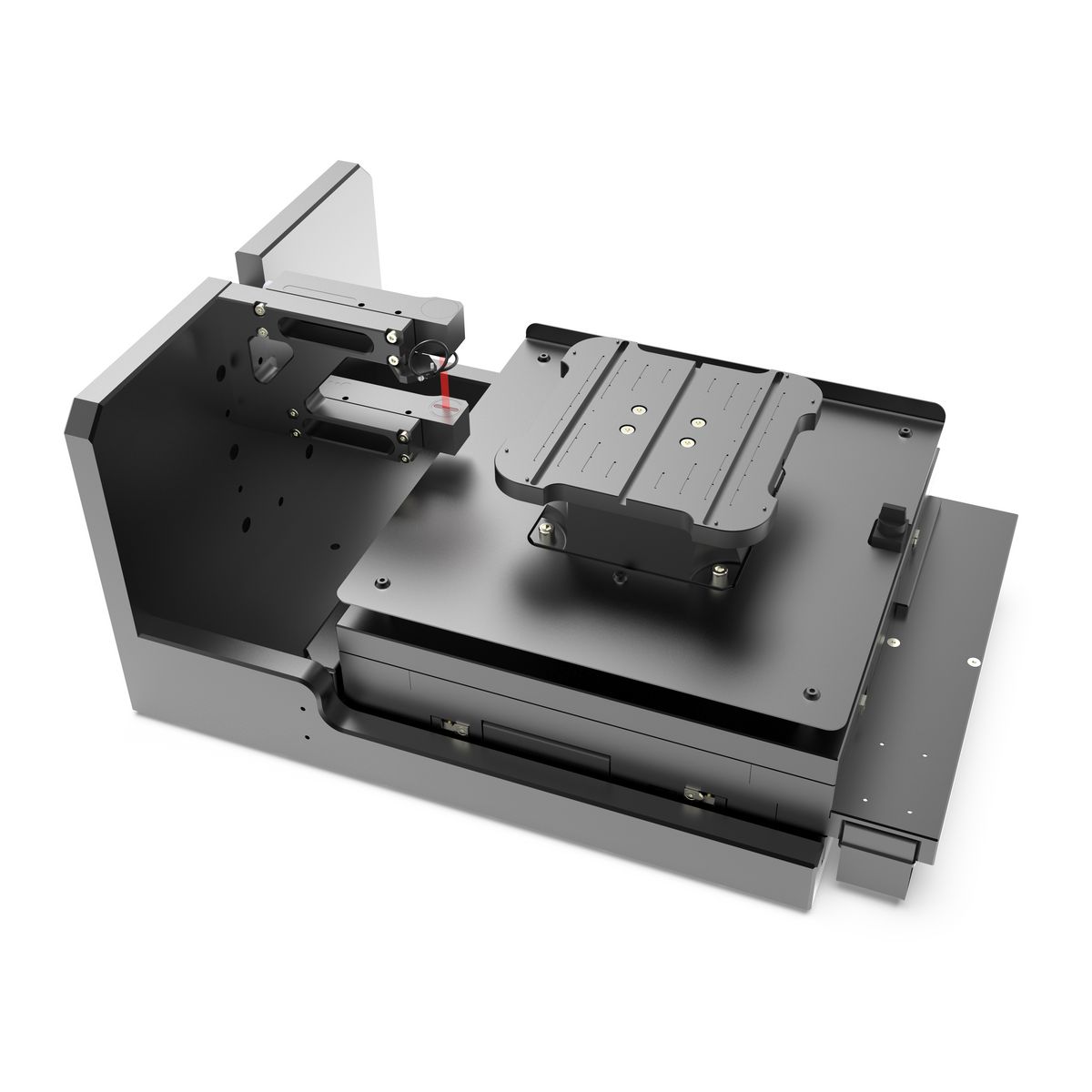

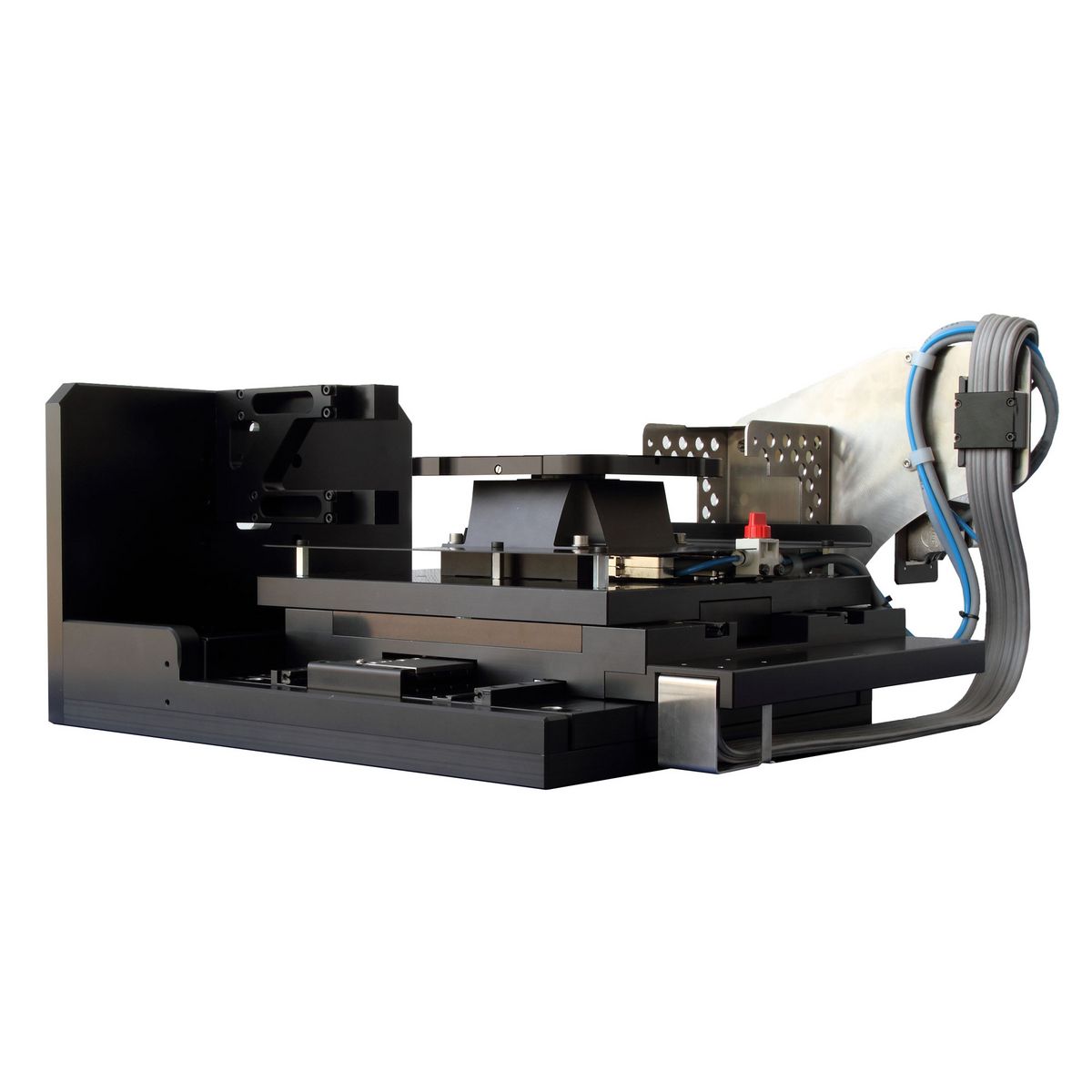

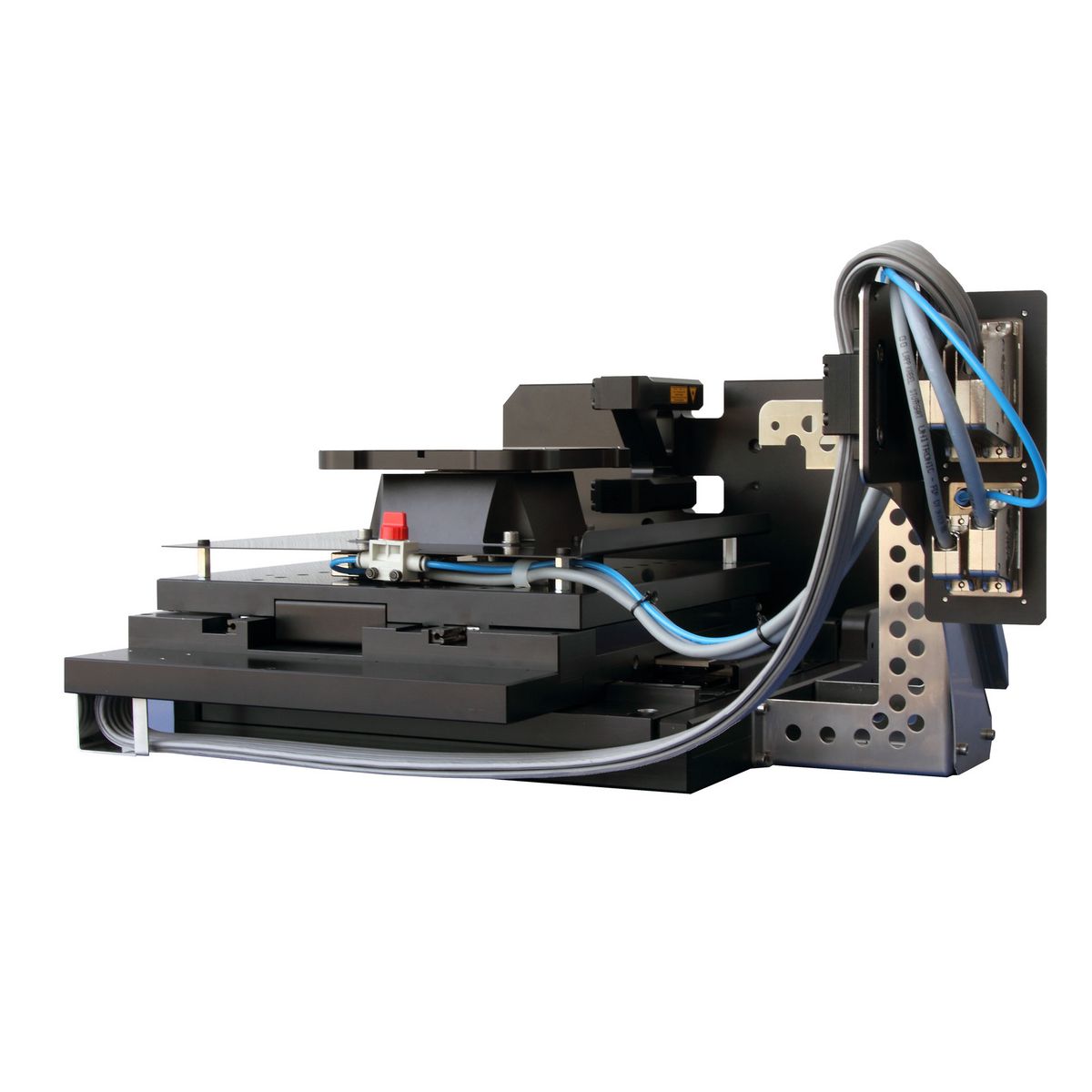

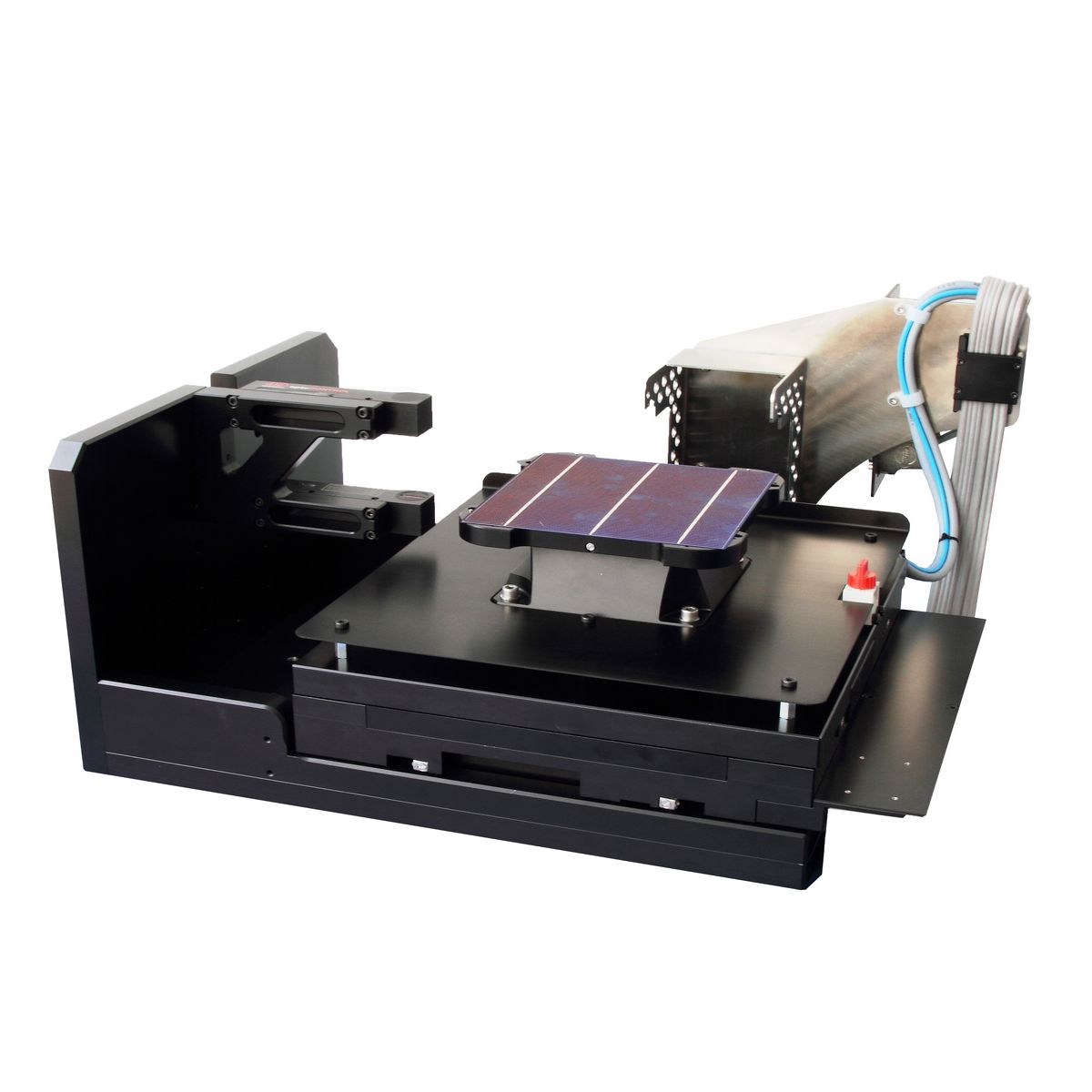

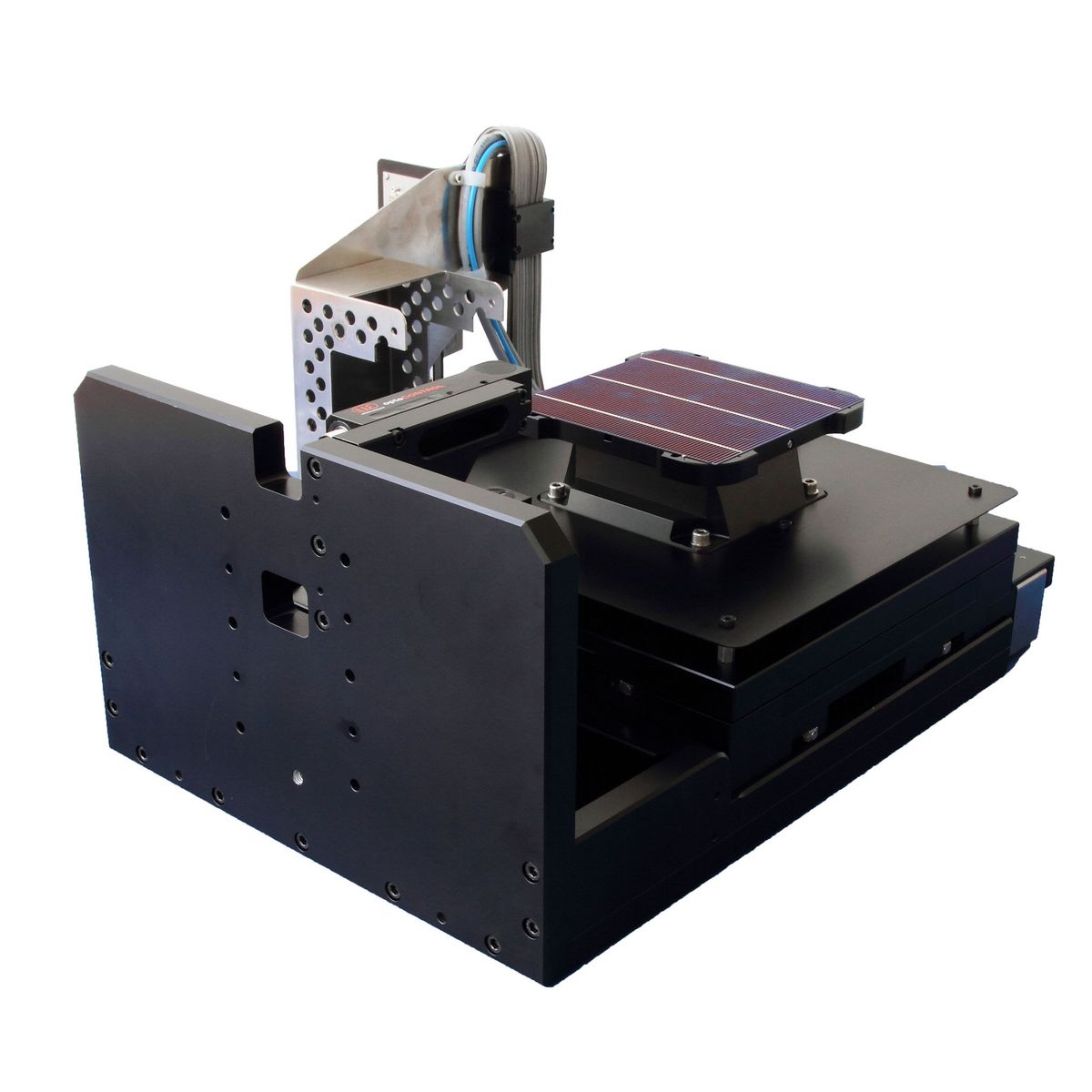

A KT310 form our standard program was combined with a rotation stage carrying a vacuum chuck. A light barrier senses the edges of the wafer an the chuck. The setup is being used for laser structuring of solar cells.

Controllers

FMC220

Versatile combinable controller, ideal for laboratory applications, control of 1 - 128 axes simultaneously

FMC400/450

Multi-axis controller fully ready for tracking, simple creation of own programs.

PLC

We support integration of our systems into PLC architectures, e.g. Beckhoff

Used Standard Components

KT305-EDLM

Performance XY stage (linear motor), travel 210 x 210 mm, rep ± 0.3 µm, load 8 kg, speed 225 mm/s
