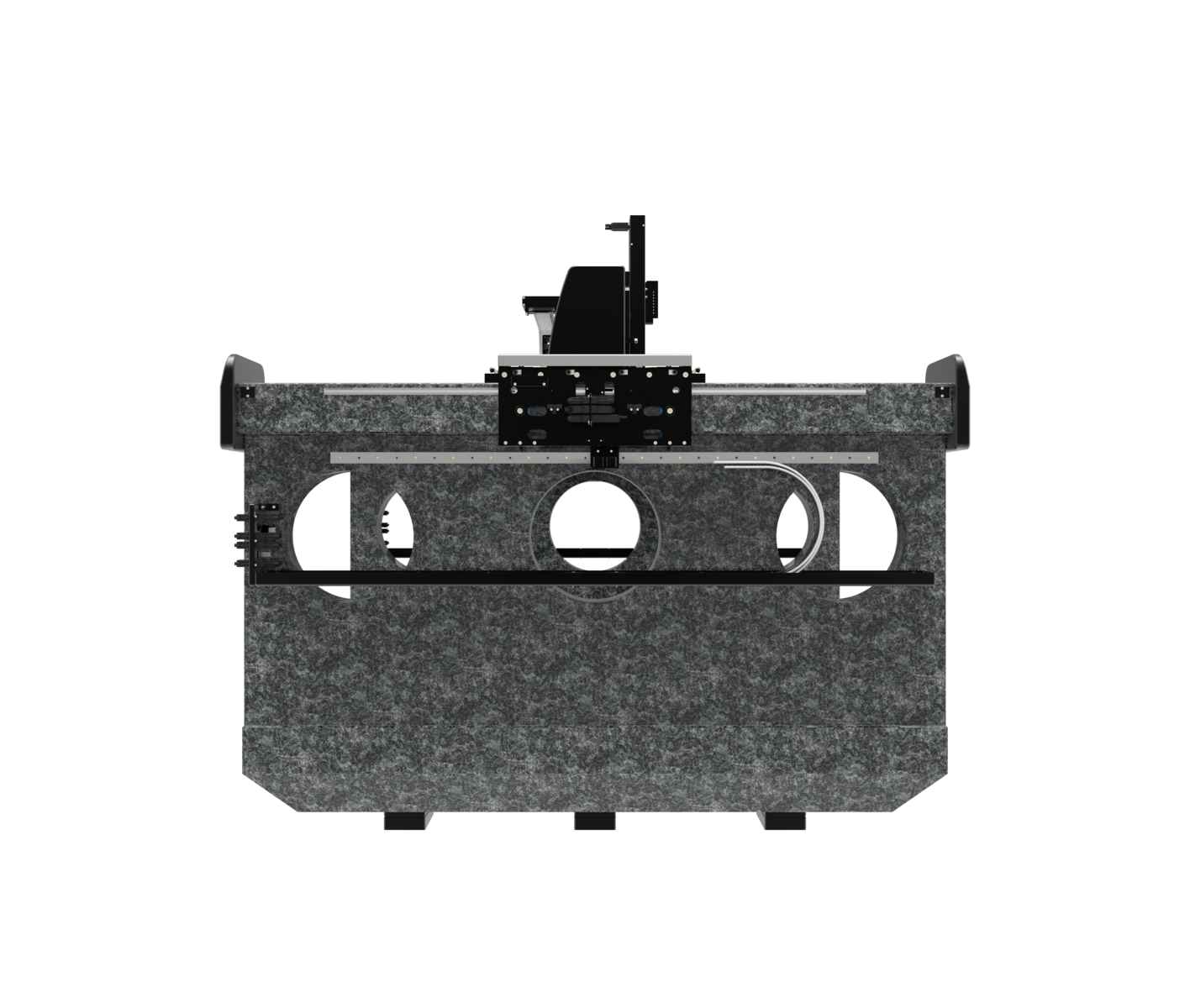

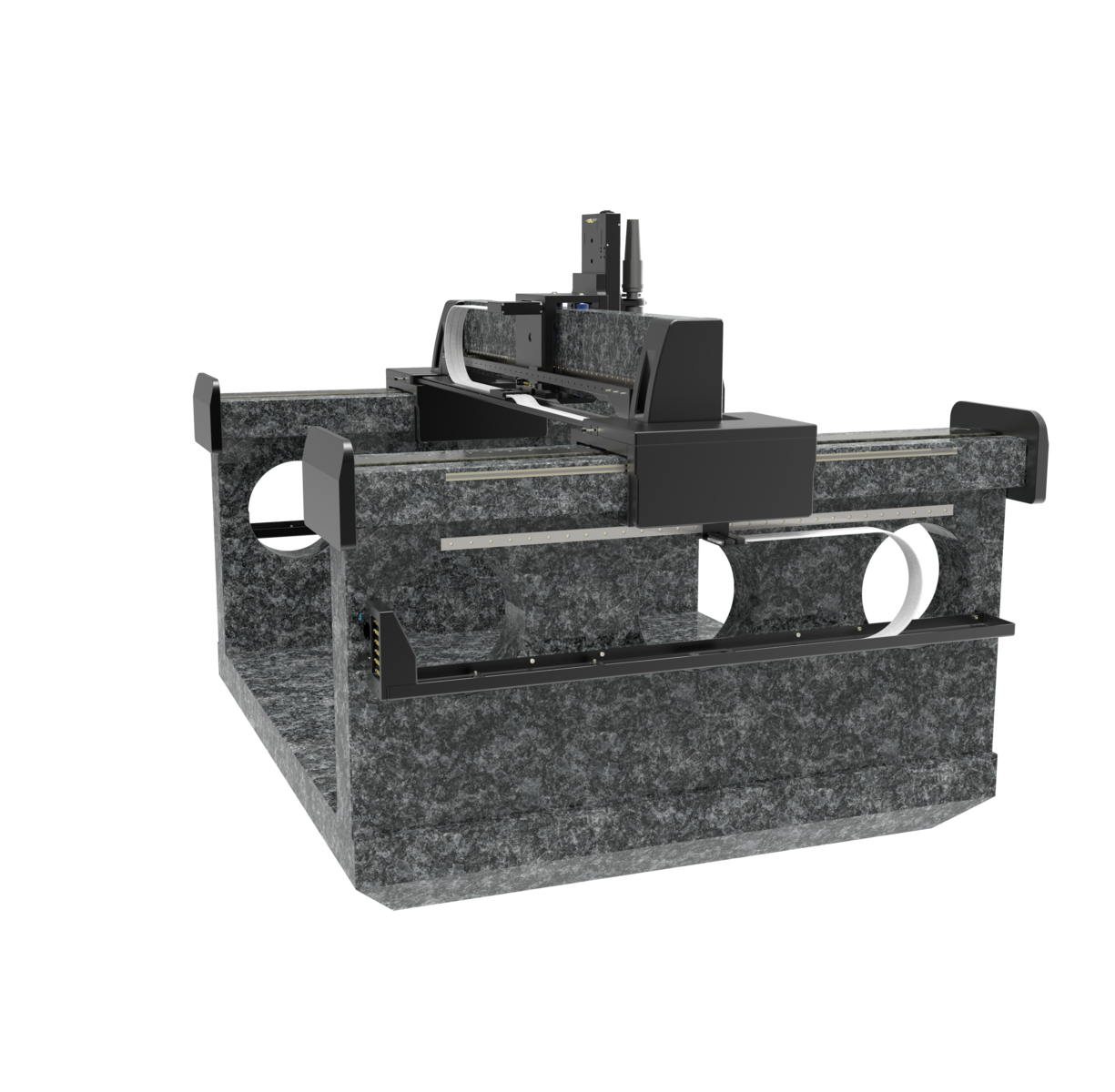

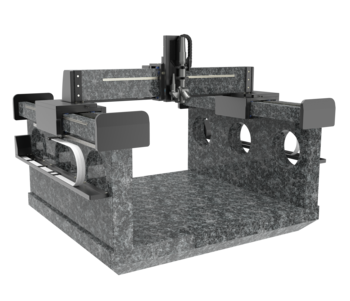

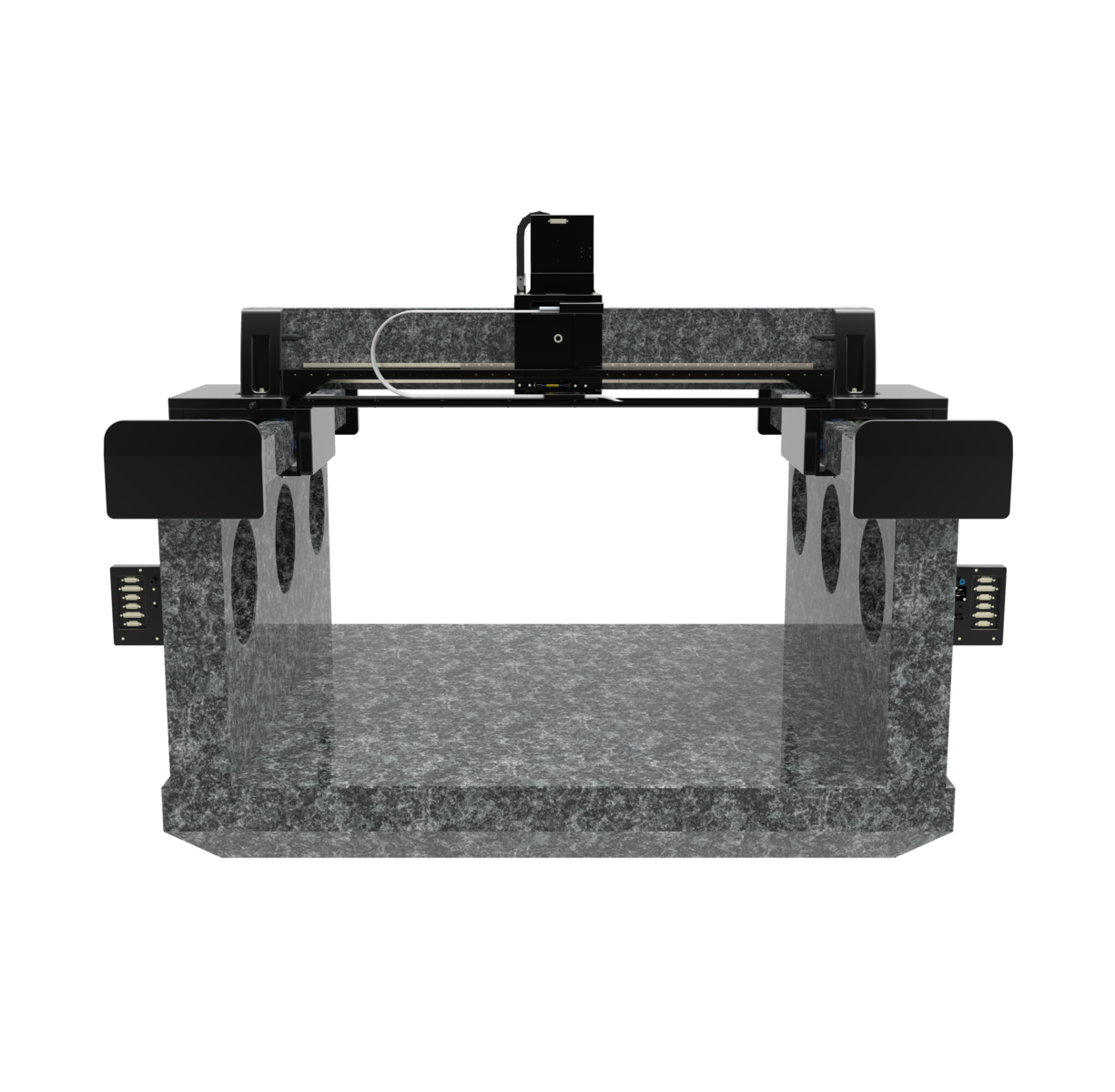

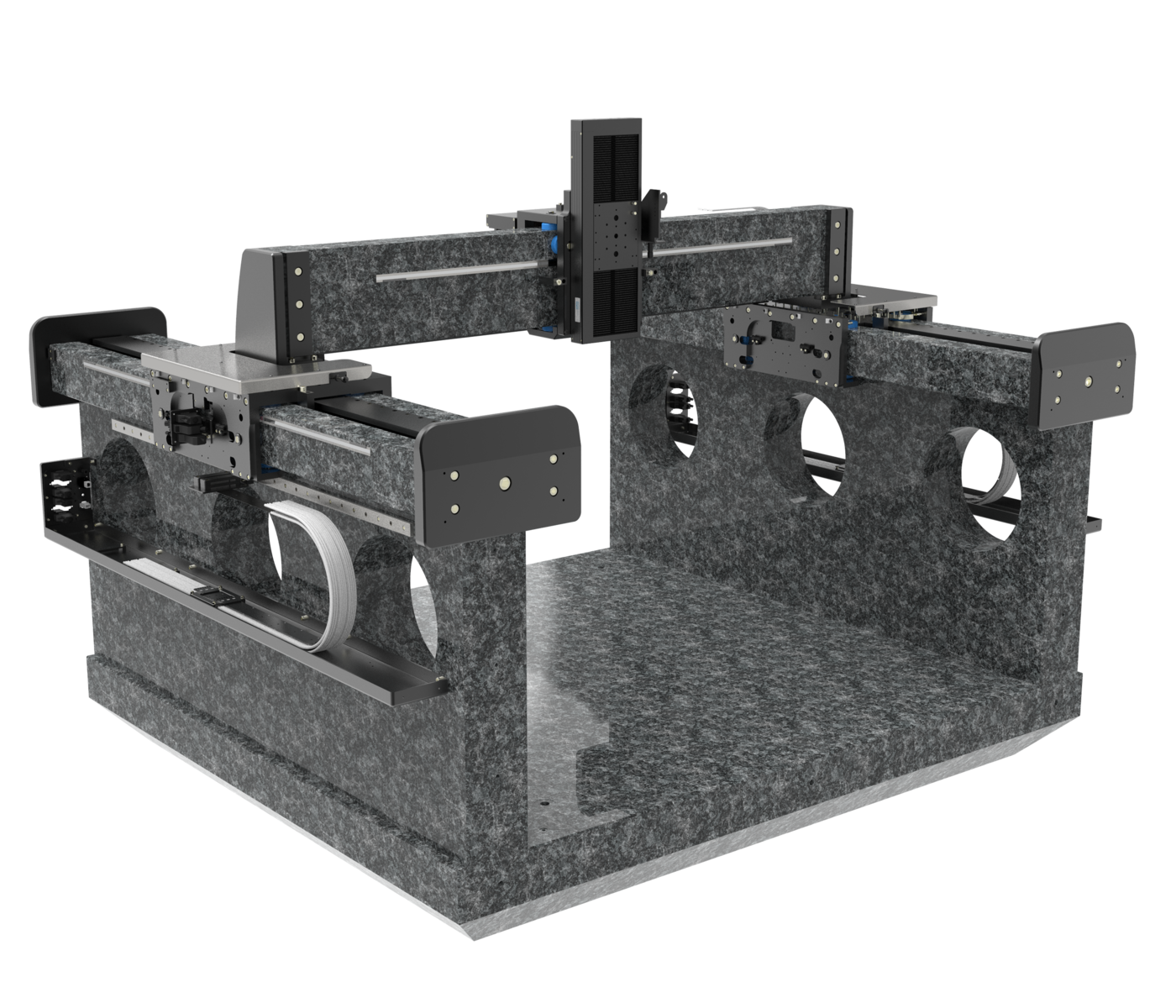

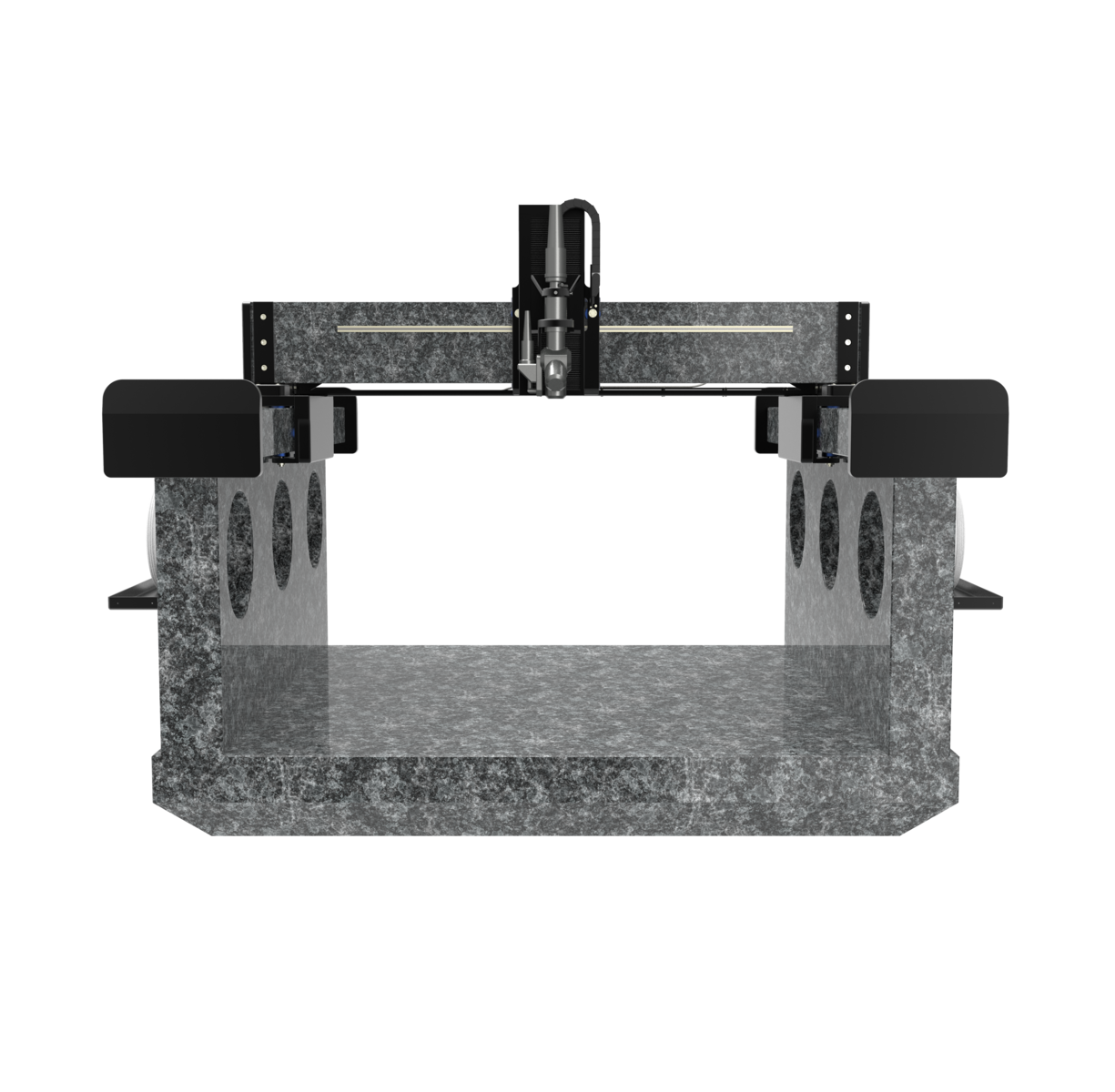

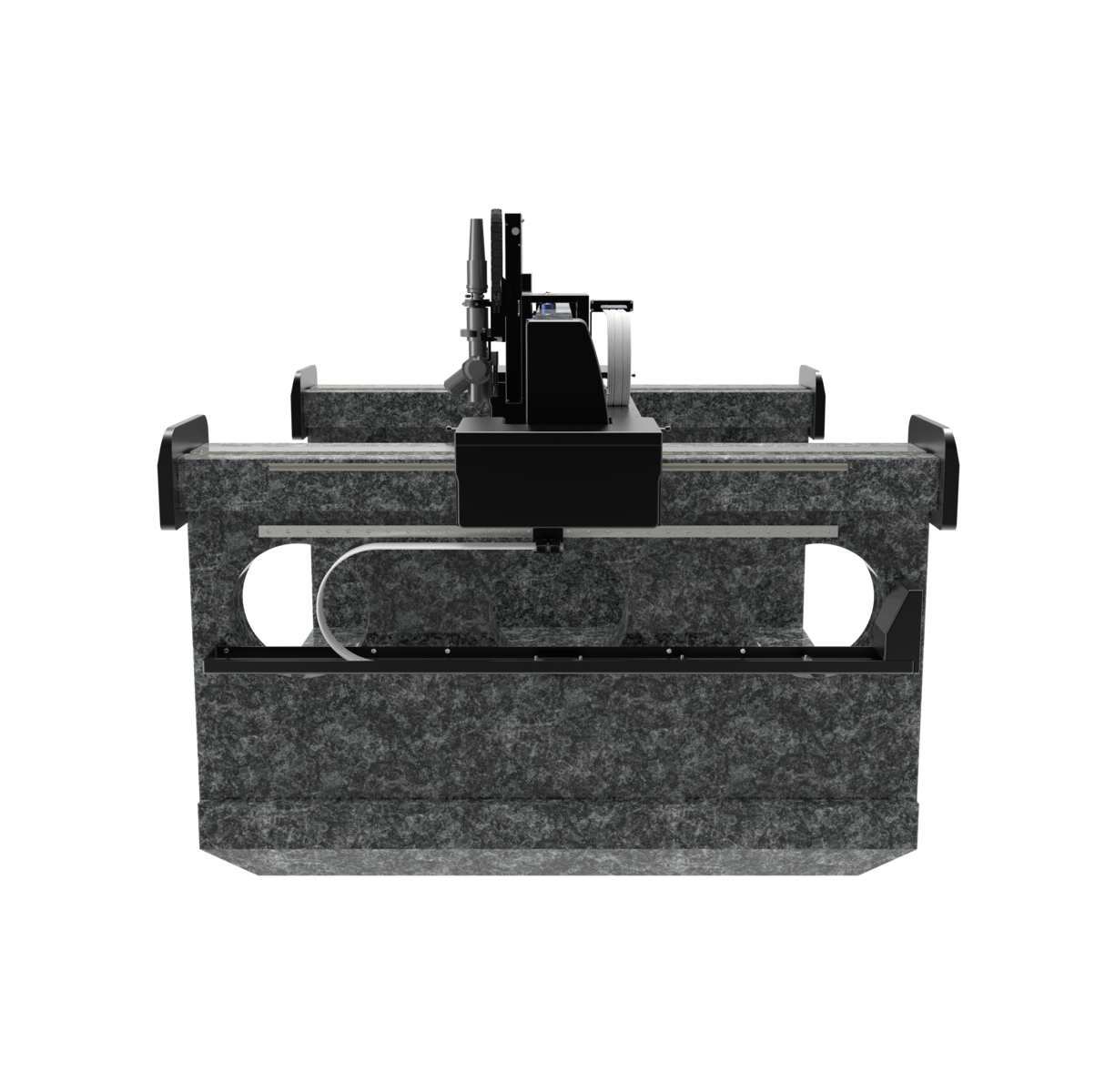

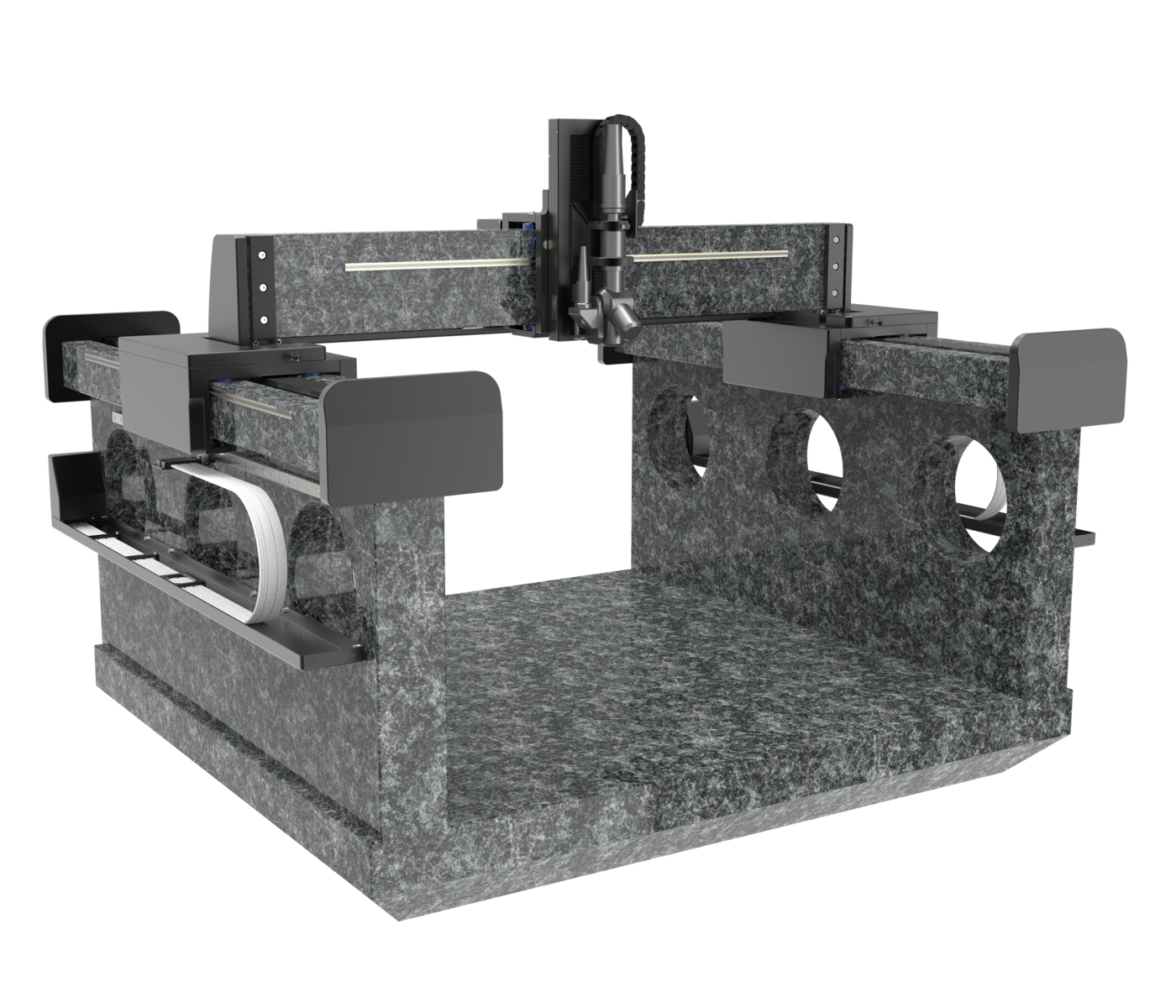

XYZ gantry for inspection of large parts up to 450 x 1000 x 1000 mm | XY linear motor, air bearing | Z ball screw, DC motor
Gantries

782350:003.26
XYZ gantry for inspection of large parts up to 450 x 1000 x 1000 mm | XY linear motor, air bearing | Z ball screw, DC motor - Gantries



Ultra-precise measurement of large and high parts

This XYZ positioning system is suitable for high-precision measurement of large and high samples over 450 x 1000 x 1000 mm. It is set up at ground level to allow loading with lift trucks.A custom microscope, camera or sensor can be attached to the Z-axis to measure the sample with an XYZ overhead movement. This enables high-resolution imaging in the nanometer range as well as numerous measurement functions for 2D and 3D imaging.

Flexibly adaptable to individual processes

  • Ideal for high-precision inspection of large parts up to 450 x 1000 x 1000 mm
  • Resolutions in the nanometer range due to exceptionally high rigidity
  • Individual adaptation to customer-specific microscope, camera or sensor
  •  Outstanding high throughput at speeds up to 2420 mm/s
  • Low maintenance and flexible 24/7 operation with air bearing under variable parameters
Optionally expandable:
  • Adaptation of travels, length combination, cabling and motion
  • Customization and integration into the overall customer-specific application
  • Ready-to-use control with pre-configured controller incl. sample software

Individual extensions and customizations

Engineering services include the fitting of the systems to your structure and the desired controlls. Furthermore, we develop prototypes and like to adapt the systems to the environmental requirements of your application particle emission, radiation, temperature, precision special parts manufacturing, working height, collision protection, safety concept, compensation factor and filter, sensor mounting, brake, decoupling, special lubrication, special colors, holders, adapters, special motors with pharmaceutical approval, comprehensive documentation, test protocoll, llife cycle tests

Fields of application

Automatic optical inspection (AOI), 3D imaging, inspection system for measuring and testing tasks, laser material tasks, quality assurance, inspection of large bulky objects e.g. engine blocks



782350:003.26



X

Y

Z

Travel

[mm]

1000

1000

200

Repeatability unidirectional

[µm]

± 0.3

± 0.3

± 0.3

Repeatability bidirectional

[µm]

± 0.4

± 0.4

± 0.4

Positioning speed

[mm/s]

1210

1210

30

Max. speed[mm/s]242024202420

Max. load

[N]

100

500

150

Motor



Ironless Dynamic Linear Motor

Ironless Dynamic Linear Motor

DC-Motor

Drive







Ball Screw

Guide



Air Bearing

Air Bearing

Cross roller bearings

Feedback



Linear Scale

Linear Scale

Linear Scale

Max. component height (test object)[mm]450
