High-precision sample loading in automation

This linear positioning stage allows high-precision sample loading in the submicrometer range. It is especially suitable for applications for travels up to 150 mm in a very limited installation space of 250 mm, where the load can be distributed differently. By optimizing the drive concept and adjusting the preload, transmission errors on transmission elements can be reduced to a minimum, despite the small installation space.

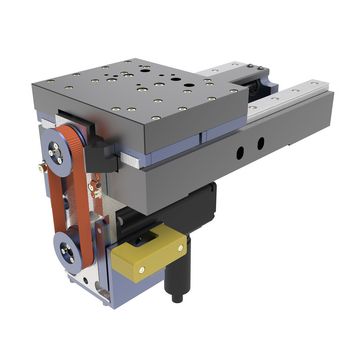

Drive relocated to the rear for more space

  • Ideal for automated sample loading up to 150 mm with a minimum installation space of 250 mm
  • Rigid, strong and highly stable due to aluminum base body for absolutely consistent processes
  • Good price-performance ratio due to stepper motor operation
  • Integrated ball screw drive withfold back drive for low-maintenance 24/7 operation
Optionally expandable:
  • Adaptation to further travels, lengths and loads
  • Various motor variants
  • Can be combined with rotary tables for rotary applications
  • Immediate use with pre-configured controller incl. exemplary software

Individual extensions and customizations

Engineering services include the fitting of the systems to your structure and the desired controlls. Furthermore, we develop prototypes and like to adapt the systems to the environmental requirements of your application particle emission, radiation, temperature, precision special parts manufacturing, working height, collision protection, safety concept, compensation factor and filter, sensor mounting, brake, decoupling, special lubrication, special colors, holders, adapters, special motors with pharmaceutical approval, comprehensive documentation, test protocoll, llife cycle tests

Application areas

Automation in biotechnology, laboratory applications, pharmaceutical production, research and development


782412:004.26 X
Repeatability unidirectional[µm]± 1.8
Repeatability bidirectional[µm]± 3
Positioning speed[mm/s]75
Max. load [N]45
Length[mm] 250
Motor Stepper Motor
Drive Ball Screw
Feedback Linear Scale


Angepasstes System für Ihr Gesamtkonzept
