Measuring System for Pitch Errors of Ball Screw Drives
Inspection and Mikroscopy
789595:006.26

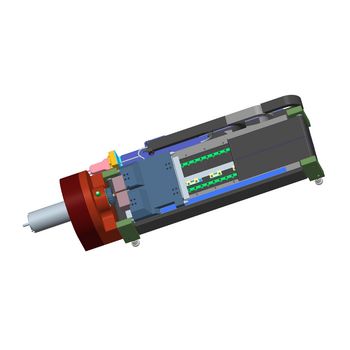

This device is for measuring the pitch of ball screw drives. A linear scale with 1,26µm grating guaranties minimal cyclical error. A software combines the readings of the linear scale with the reading of a high resolution angular ring at the drive, hence enabling to plot the pitch error of the ball screw drive over the stroke in mounted condition.
