Drive
Smorgasbord

782441:003.24

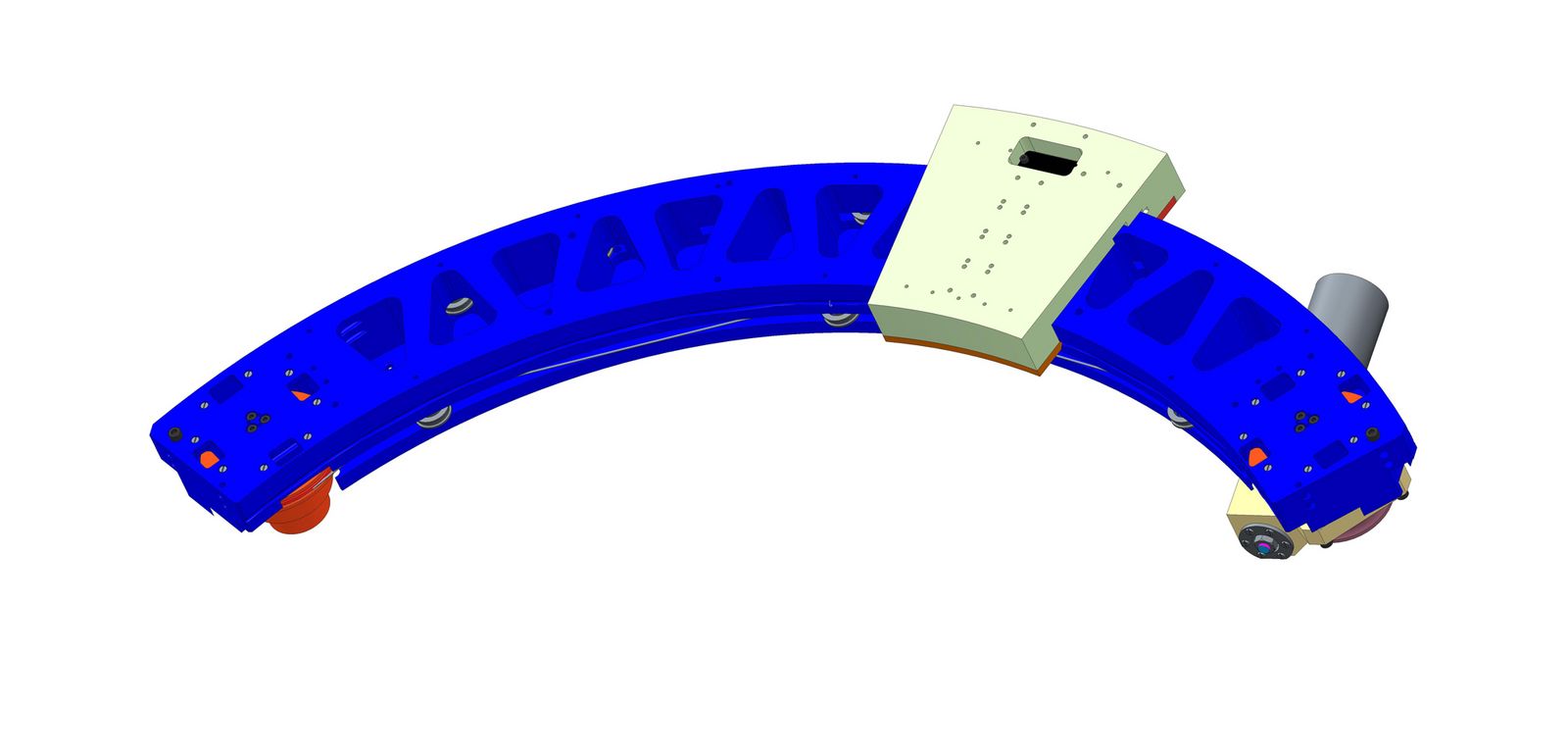

This arch is carrying a x-ray detector around a vector magnet of 1,7 T. Everything near the magnet is of nonferrous materials and ultra high vacuum compatible. This arch is part of the Bessy Detector Manipulator.



Angepasstes System für Ihr Gesamtkonzept

201/5000 Even more axes for your vacuum applications

Almost all atmospheric standard axes are anodized with UHV lubrication for residual pressures up to 10-6 mbar - or even better - available. Click here for the overview of our standard axes!

Overwiew standard stages   Contact technical consultants



Are you looking for a technical solution for your application?

Get your first 3D Design in a few days:
