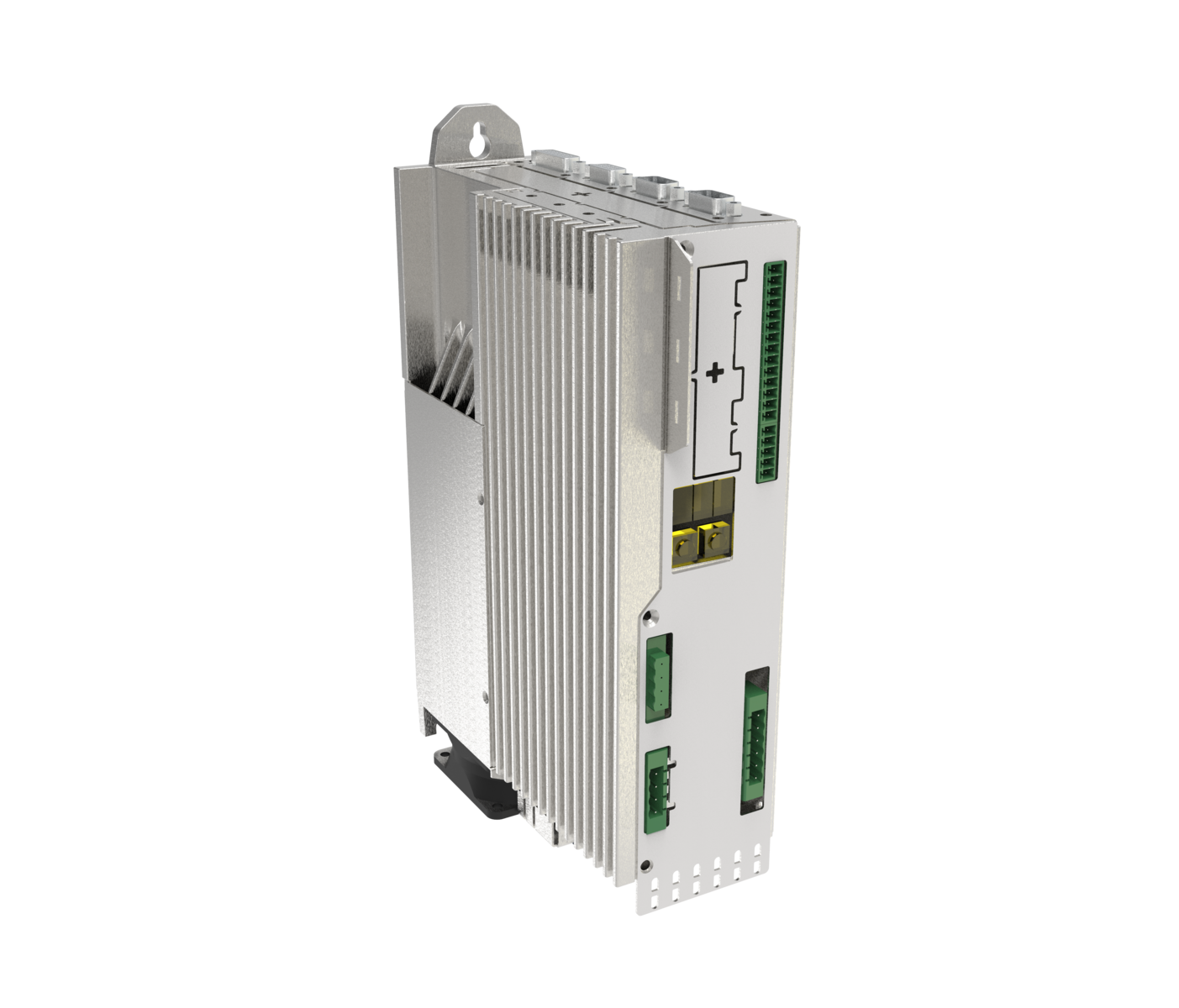

FMC300
This industrial motion controller is best suited for industrial applications for point-to-point positioning. It is a single axis module which has been designed for installation in your switch cabinet. Multi-axis configurations can also be realized using relevant couplings with bus.
The system is suitable for AC server motor or 3-phase linear motors (DLM, EDLM).
The controller is also used for our PLT series or even large portals and stacked multi-axis systems. Due to the possible connection directly to the 240V ac or 400V ac network, the controller provides up to 600V dc at up to 30 A in order to position even heavy loads at full speed.
| Description | FMC 300 |
| Trajectories | no |
| Gantry | yes |
| Max. Number of Axes | 128 |
| Stepper Motor SM | no |
| Brush Motor DC | no |
| Servomotor AC / BLDC | yes |
| Linear Motor ironless EDLM | yes |
| Linear Motor iron DLM | yes |
| Piezomotor PM | no |
| Nanomotion Piezo NM | no |
| Max. Motor Voltage | 300V (1ph) … 600V (3ph) |
| Max. Motor Continuous Current | 300V: 10A 600V: 30A |
| Absolute Scale | yes |
| Analogue Scale | yes |
| Dual loop Encoder | yes |
| Max. Encoder Input Digital | 1,5MHz |
| Max. Encoder Input Analog | 350kHz |
| Compensation | no |
| RS232, USB | yes, yes |
| BUS | EtherCAT, CANopen, Profibus, DeviceNET, Sercos |
| I/O (z.B. for Brake) | (2 in, 2 out) per axes |
| STM Quick Access | yes |
| Emergency Off | yes |
| Safe Torque Off | yes |
| Safe Speed Control | optional |
| Housing | in enclosure at customer |
