Modular. Customized. Highly precise.

Steinmeyer delivers high-precision positioning systems tailored to your exact requirements. Whether it's customizing existing solutions or developing entirely new ones: With our complete team of engineers and experienced manufacturing team, we are equipped to become an extension of our customers engineering department and be a partner. We provide a complete selection of services, including engineering, prototypes and large series production.

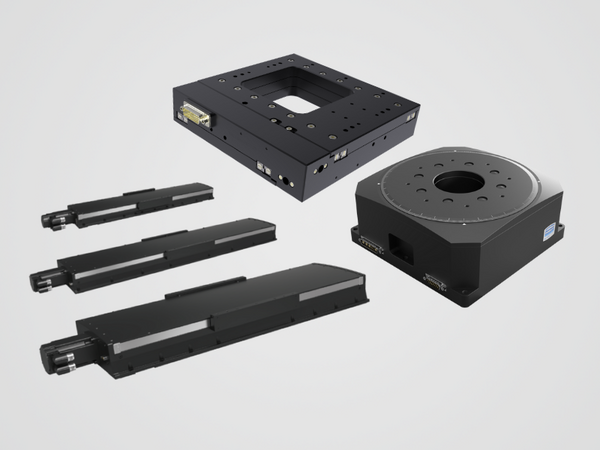

Positioning Systems Portfolio

Positioning Systems by Motion Direction

Linear Axes

High-performance linear axes, Travel up to 2000 mm, Rep up to 0.3 µm, Load up to 310 kg, Speed up to 4120 mm/s

Linear Stages

Modular linear stages, Travel up to 1500 mm, Rep up to 0.3 µm, Load up to 310 kg, Speed up to 3260 mm/s

Miniature Stages

Miniature Linear Stages, Travel 10 - 80 mm, Rep up to 0.2 µm, Load up to 9 kg, Speed up to 100 mm/s

XY Stages

XY Kreuztische als präzises Positioniersystem
Precision XY Stages, Travel up to 450 x 450 mm, Rep up to 0.2 µm, Load up to 30 kg, Speed up to 1400 mm/s

Rotary Stages

Rotary Stages
Rotary positioner, travel up to n x 360° (unlimited), rep up to 0.0001°, load up to 15 kg, speed up to 1500°/s

Lifting Stages

Z vertical stages, Travel up to 25 mm, Rep up to 0.7 µm, Load up to 45 kg, Speed up to 10 mm/s

  • XY Theta >

    Combined linear and rotational motions (XY-R) within a single plane

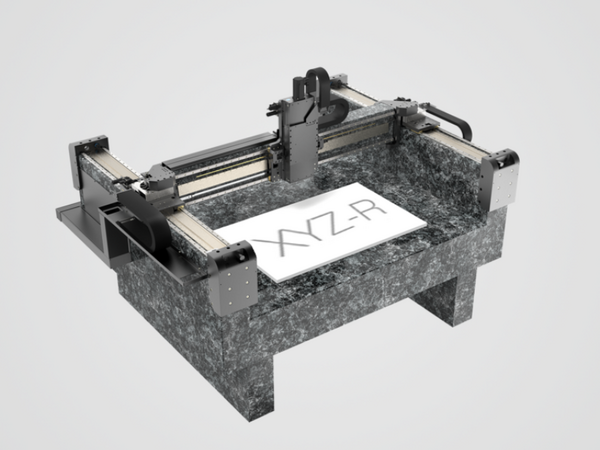

  • XYZ Gantry >

    High-speed overhead positioning for high throughput

  • XYZ Split >

    Dynamic, highly modular architecture for multi-process integration

  • XYZ Lab >

    Precision, reliability, and modularity for scalable lab solutions

  • XYZ Tip-Tilt >

    Multi-degree-of-freedom kinematics for active alignment or hexapod substitution

  • Compact Systems >

    Space-saving precision actuator with multi-DOF capabilities

  • Discover more >

    Our standard systems can be individually combined for multiple degrees of freedom
