Universal Gantry (clean room) | XYZ positioning system for synthetic and biological 3D printing, assembly and inspection | Travels up to 600 mm
Additive manufacturing / 3D Printing

782429:009.26

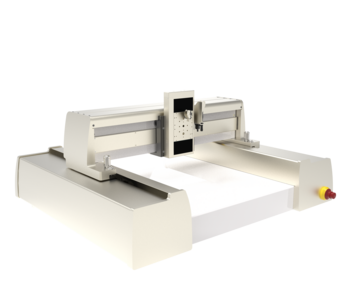

XYZ positioning system for 3D printing, assembly and inspection tasks

This compact and highly dynamic 3-axis system is specially designed for 3D printing of fragile substrates.

The customized print head on Z-axis moves extremely fast over the substrates. Due to the large traverse paths up to 600 mm, high volumes can be achieved. For custom applications, the system can be adapted for a variety of carrier formats, samples and environmental conditions, each according to requirements. The gantry design makes it easy to integrate into cycle lines and to line up several such gantries.


Flexible adaptation to production requirements

  • Ideal for high-precision, universal additive manufacturing and inspection processes
  • Very large travel ranges of 600 x 600 x 100 mm
  • Reliable and consistent results due to high-precision positioning with repeatability up to 0.5 µm
  • Acceleration of throughput times of small samples with up to 2 m/s2, especially when frequent start-stop phases are required
  • Low maintenance and flexible 24/7 operation with air bearing under variable parameters
Optionally expandable:
  • Stackable system design
  • Adaptation of travels, length combination up to 1 m, cabling and control system
  • Base plate made of granite or aluminum
  • Special configuration for biotechnology, medical technology, pharma, semiconductor
  • Customization for synthetic, biological or living samples
  • Versions for clean room ISO 14644-1 class 6 (up to class 1 on request)
  • Immediate use with pre-configured controller incl. exemplary software

Robust, compact and highly dynamic

This axis system is both fast and accurate. You benefit from higher productivity, lower maintenance costs and can approach smaller and thus more positions per part or sample carrier. It thus meets a wide range of production requirements for the high throughput of most formats such as slides, microtiters, wafers and a variety of carriers. With special lubrication and adapted particle traps, this universal gantry can be adapted for use in the pharmaceutical industry, medical technology or for clean rooms.



Individual extensions and customizations

Engineering services include the fitting of the systems to your structure and the desired controlls. Furthermore, we develop prototypes and like to adapt the systems to the environmental requirements of your application particle emission, radiation, temperature, precision special parts manufacturing, working height, collision protection, safety concept, compensation factor and filter, sensor mounting, brake, decoupling, special lubrication, special colors, holders, adapters, special motors with pharmaceutical approval, comprehensive documentation, test protocoll, llife cycle tests





Fields of application

3D printing, digital printing, additive manufacturing of tablets and drugs, development of drugs and vaccines, automation, microextrusion, scanning, chip systems, automation in chip manufacturing, digital printing

782350:001.26XYZ
Standard system LA340-EDLM LA340-EDLM PMT160-DC
Travel [mm; deg] 600 600 100

Repeatability unidirectional

[mm; deg] ± 0.5± 0.5 ± 1.5

Repeatability bidirectional

[mm; deg] ± 1± 1 ± 2

Positioning speed

[mm/s; deg/s] 100100 25

Max. load

[N] 20
Motor

Ironless Dynamic Linear Motor

Ironless Dynamic Linear Motor

DC-Motor
Guide

Air Bearing

Air Bearing

Air Bearing

Drive

Ball Screw

Feedback

Linear Scale

Linear Scale

Linear Scale



Specifications are subject to change. Values are for the single axis with our controller. Parameters shown here are typical values for a standard configuration. By customization and given in depth knowledge of your application significantly improved values can be achieved.
