High-precision 3-axis system for short travels

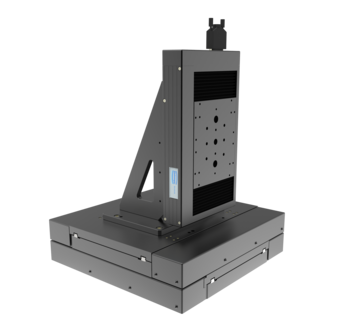

This XYZ combination consists of the high-precision and durable standard linear axes of the PMT160 which are mounted with an adapter bracket on a KLT310 xy stage. This allows positioning along three linear axes. This combination is suitable for all applications that require perfect flatness, the smallest tolerances for pitch and yaw, and smooth running. The XYZ system is ready to use with controller and operates with reliable parameters.


Flexible, ready to use and tested

  • Ideal for setting up and expanding your high-precision measurement technology
  • Very high repeatability up to 0.3 µm
  • Smallest step sizes and highest reliability at comparatively high top speed up to 50 mm/s
  • Perfect flatness of ± 0.5 when positioning medium loads up to 150 N

Optional expandable:

  • Travels up to 100 mm
  • Different motor variants: DC motor or stepper motor
  • Versions for clean room ISO 14644-1
  • Immediate use with pre-configured controller incl. exemplary software

Individual extensions and customizations

Engineering services include the fitting of the systems to your structure and the desired controlls. Furthermore, we develop prototypes and like to adapt the systems to the environmental requirements of your application particle emission, radiation, temperature, precision special parts manufacturing, working height, collision protection, safety concept, compensation factor and filter, sensor mounting, brake, decoupling, special lubrication, special colors, holders, adapters, special motors with pharmaceutical approval, comprehensive documentation, test protocoll, llife cycle tests

Fields of application

Measurement setup, measuring equipment, mold measurement, surface measurement, coordinate measurement, sample inspection, positioning of measuring fibers, special machine construction, inspection of optical components/parts, assembly and connection techniques in silicon photonics



782300:202.26



X

Y

Z

Used standard component KT310-DCKT310-DCPMT160-DC

Travel

[mm; deg]

50

50

50

Repeatability unidirectional

[µm; deg]

± 0.5

± 0.5

± 0.3

Repeatability bidirectional

[µm; deg]

± 0.5

± 0.5

± 2.2

Positioning speed

[mm/s; deg/s]

30

30

30

Max. load

[N]

4545

150

Motor



DC-Motor

DC-Motor

DC-Motor

Drive Ball ScrewBall ScrewBall Screw

Feedback



Linear Scale

Linear Scale

Linear Scale
